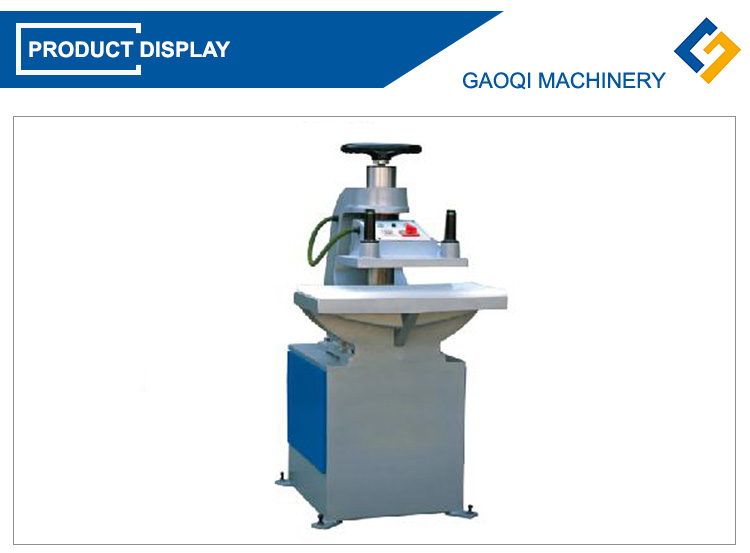

high quality hydraulic swing arm cutting press machine
Usage and features:
This machine is suitable for blanking industrial soft plastic board in cutting-die ,leather,fiber,cotton & fabric, cardboard and so on.
1.It is equipped with automatic lubricating system, to reduce wear,
prolong the service life.
2.Using the electronic delay circuit to control the lower limit
position of stroke, high precision, and can improve the quality of
shoes, the swing arm from the height of the working table
regulating by hand wheel, simple, reliable, convenient.
Technical Specifications:
| Model | GSB-2C/12 | GSB-2C/20 | GSB-2C/25 |
| Max. cutting force | 120KN | 200KN | 250KN |
| Width of swing arm | 300*450mm | 350*550mm | 450*550mm |
Stroke adjustment range | 5-55mm | 5-75mm | 5-75mm |
| Cutting speed | 0.10m/s | 0.10m/s | 0.10m/s |
| Distance between upper and lower plate | 60-140mm | 60-150mm | 60-150mm |
| Working table size | 900*400mm | 1000*500mm | 1000*500mm |
| Motor Power | 1.1KW | 1.5KW | 1.5KW |
