Jiangsu Gaoqi Machinery Co., Ltd
2 Years
| Ask Lasest Price | |
| Brand Name : | GAOQI |
| Certification : | CE |
| Supply Ability : | 30 Set/Sets per Month best price shoe uppers die cutting machine |
| Price : | $3,500.00/sets >=1 sets |
Product Description

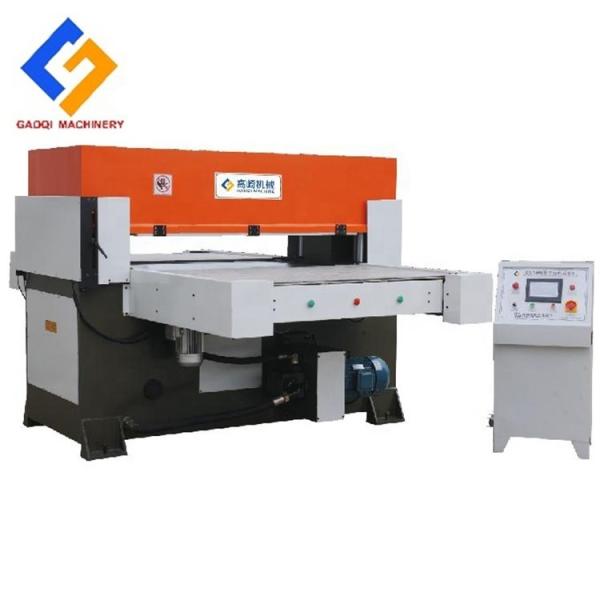

best price shoe uppers die cutting machine
Application & Features:
1. The double-side automatic feeding die cutting machine is mainly suitable for cutting various nonmetal materials and widely used in such industries as plastics packing, pearl cotton packaging, rubber and printing industries, etc.
2. PLC control system, easy to operate.
3. Saving labor cost, only need two people to operate it.
4. Small motor, small oil pump. Save electric and oil. Equipped with lubricating system to lessen wear and prolong service life.
5. 24V low power special control system.
6. Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality products.
7. Different height products can be manufactured at same time.
8. hydraulic cutting machine of special specifications can be customized.
Main technical parameters:
Model | XCLP3-300 | XCLP3-400 | XCLP3-500 | XCLP3-600 | XCLP3-800 | XCLP3-1000 |
Max. cutting force | 30T | 40T | 50T | 60T | 80T | 100T |
Stroke Range | 50-160mm | 50-190mm | 50-230mm | 50-230mm | 50-200mm | 50-200mm |
worktable size | 540*1600mm 540*1220mm | 610*1600mm 610*1220mm | 810*1600mm 810*1220mm | 810*1600mm 810*1220mm | 910*1600mm 910*1220mm | 1000*1600mm 1000*1220mm |
Motor power | 2.2KW | 3KW | 4KW | 4KW | 5.5KW | 5.5KW |
hydraulic oil | 90L | 140L | 200L | 220L | 320L | 330L |
Advantages:
1. Controlled by PLC, electrical cabinet, human-computer interface, easy to operation.
2. The main machine adopts double oil cylinder, double-crank connecting rod balance, four-columns, which can guarantee the cutting depth at every cutting position is the same.
3. The pressing board carries out slow cutting when it presses down to contact the die cutter, which can make that there is no size error between the top layer and bottom layer of cut material.
4. Single-side or double side auto feeding system for choosing, which can improve the production capacity.
5. Die cutter pneumatic clamp device can be installed to make the
replacement of die cutter convenient and prompt.
|
|
