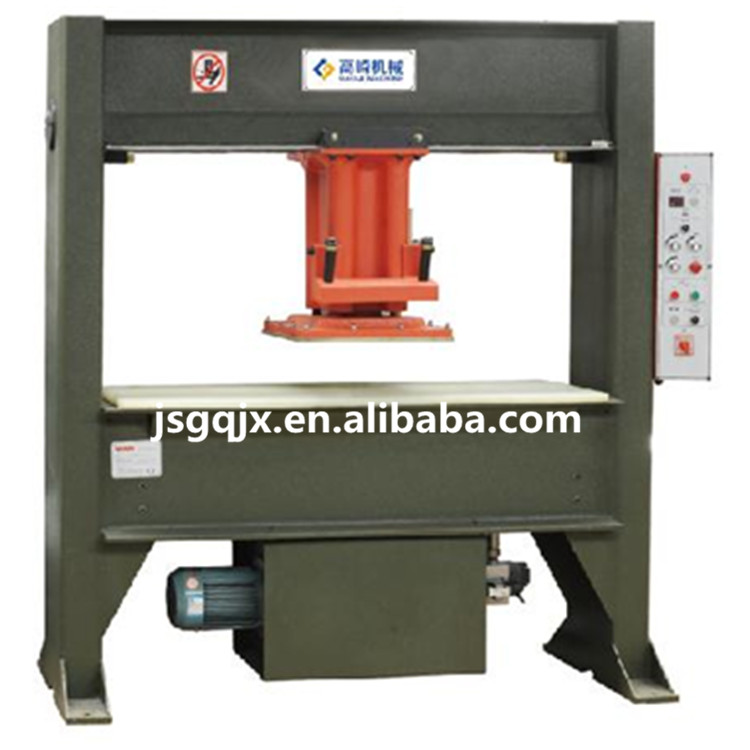

    Hydraulic Leather Die Cutting Machine For Shoe Leather Cutting

    Ask Lasest Price
    Brand Name : GAOQI
    Supply Ability : 30 Set/Sets per Month cutting press
    Price : $4,500.00 - $17,880.00/sets
    • Product Details
    • Company Profile

    Hydraulic Leather Die Cutting Machine For Shoe Leather Cutting

    shoe making equipment clicking press die cutting machine

    USE AND CHARACTER

    1.Suitable for molding cutter die blanking, cutting operations on a variety of non metallic materials.

    2.By steel production of Longmen frame structure, high strength, no deformation.

    3.The punch can automatically traverse, best operation line of sight, safe and reliable.

    4.Special design of hydraulic system, low noise, less oil.

    5.The plate up position can be set arbitrarily, reduce air travel, improve work efficiency.

    6.Punch walking automatic transmission control, realize flexible walking, fast speed, no impact, accurate positioning.

    7.The use of differential circuit, the blanking fast, portable.

    8.Special specifications can be customized (such as:cutting force, punch size, worktable size, automatic feeding device , etc.)

    Main Technical Specifications:

    ModelXCLL3-250XCLL3-250AXCLL3-250BXCLL3-500XCLL3-500AXCLL3-500B
    Max. Cutting Force25T25T25T50T50T50T
    Worktable Size1600*500mm1800*500mm2000*500mm1600*500mm1800*500mm2000*500mm
    Punch Size500*500mm500*500mm500*500mm550*550mm550*550mm550*550mm
    Stroke Range5-150mm5-150mm5-150mm5-150mm5-150mm5-150mm
    Main Motor Power2.2KW2.2KW2.2KW4KW4KW4KW
    Voltage3*440/415/400/380/220/200 V , 50/60 HZ

    Overall Dimension

    (L*W*H) mm

    2200*720*20002400*720*20002600*720*20002200*720*20002400*720*20002600*720*2000
    Weight1600kg2100kg3000kg3000kg3800kg5000kg
