Jiangsu Gaoqi Machinery Co., Ltd
2 Years
| Ask Lasest Price | |
| Brand Name : | GAOQI |
| Certification : | ISO9001 |
| Supply Ability : | 35 Set/Sets per Month |
| Price : | $14,500.00 - $28,500.00/sets |
In industrial use, hot melt adhesives provide several advantages
over solvent-based adhesives. Volatile organic compounds are
reduced or eliminated, and the drying or curing step is eliminated.
Hot melt adhesives have long shelf life and usually can be disposed
of without special precautions.
The most advanced hot melt adhesive, moisture reactive hot melt
glue (PUR & TPU), is highly adhesive and environmentally friendly.
It can be used for lamination of 99.9% textiles. The laminated
material is soft and high temperature resistant. After moisture
reaction, the material will not be easily affected by the
temperature. Besides, with lasting elasticity, the laminated
material is wear resistant, oil resistant and aging resistant.
Especially, mist performance, neutral color and other various
features of PUR makes medical industry application possible.
Widely used in:
1. Textiles and Garments Industry
2. Medical Products Industry
3. Bags and Luggage Industry
4. Packaging Industry
5. Footwear Industry
6. Decoration Industry
7. Auto interior decoration Industry

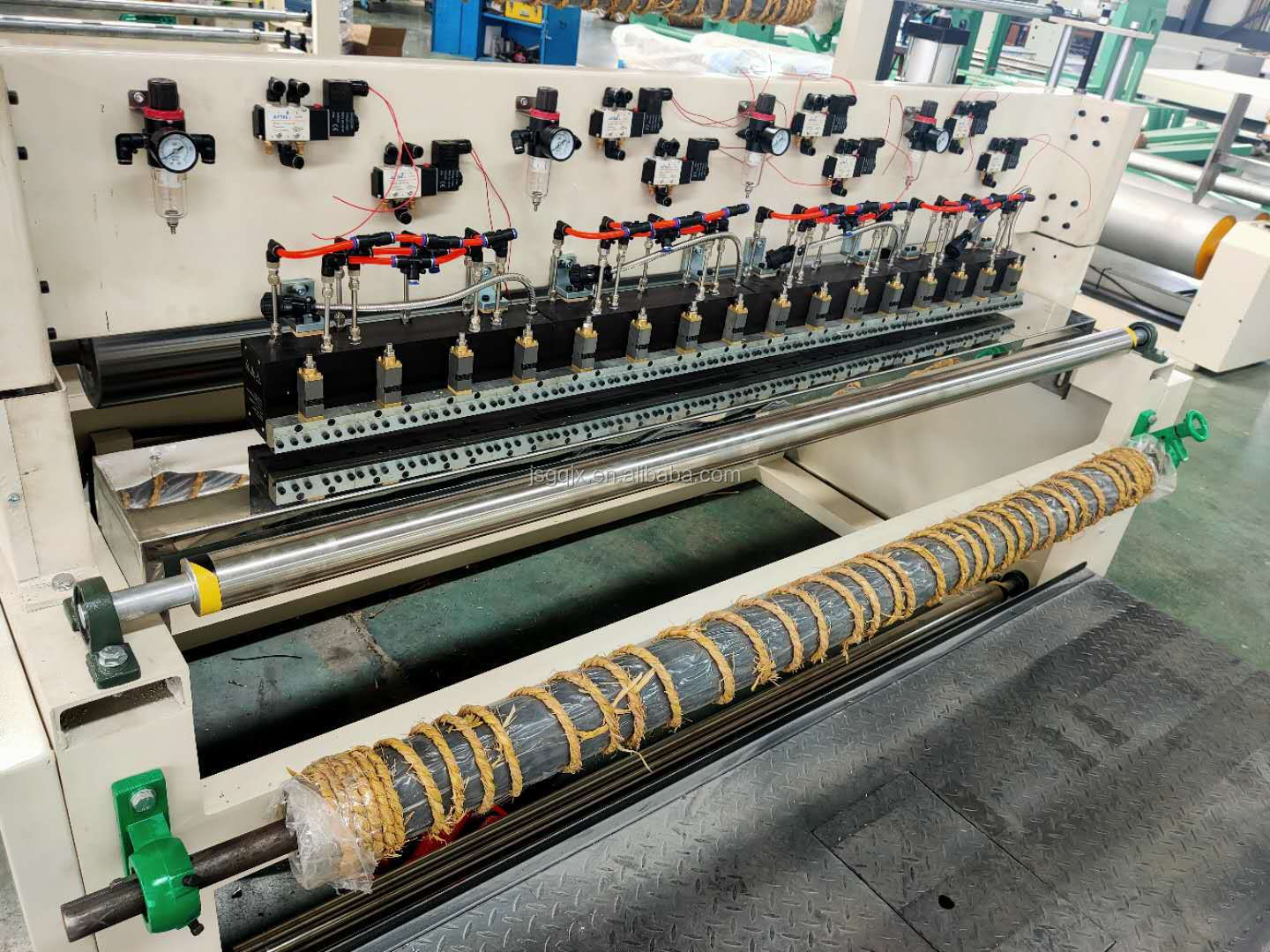

Specification for hot melt glue laminating machine | ||
Laminate fabrics width | 1600mm, customizable | |
Roller Width | 1800mm,customizable | |
Production speed | 0-45m/min | |
Heating Method | heat conducting oil | |
Voltage | 380v, customizable | |
power | about 55kw | |
1. Applied for gluing and laminating of hot melt glue onto textiles
and nonwoven materials.
2. Hot melt adhesives makes possible environmental friendly
products and realizes no pollution during the whole process of
lamination.
3. It's of good adhesive
property,flexibility,thermostability,non-cracking property at low
temperature.
4. Controlled by Programmable Logic Controller system with touch
screen and modular designed structure, this machine can be easily
and simply operated.
5. Famous brand motors and inverters can be installed for stable
machine performance
6. Non-tension unwinding unit makes laminated materials smooth and
flat, guaranteeing good bonding effect.
7. Fabric and film openers also makes materials feed smoothly and
flatly.
8. For 4-way stretch fabrics, special fabric transmission belt can
be installed on the laminating machine.
9. Impregnability of temperature after PUR,lasting
elasticity,wear-resistance,oil resistance and anti oxidation.
10. Low maintenance cost and less running noise.
11. When it is applied in lamination of functional waterproof
moisture permeable films such as PTFE,PE and TPU, more materials
which are waterproofing and insulated, waterproof and protective
and oil-water filtering will even be invented.
100% Response Rate
100% Response Rate
100% Response Rate
Packaging | ||
Size | 40HQ | |
Weight | 7.5T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. | |
* Inquiry and consulting support.
* Sample testing support.

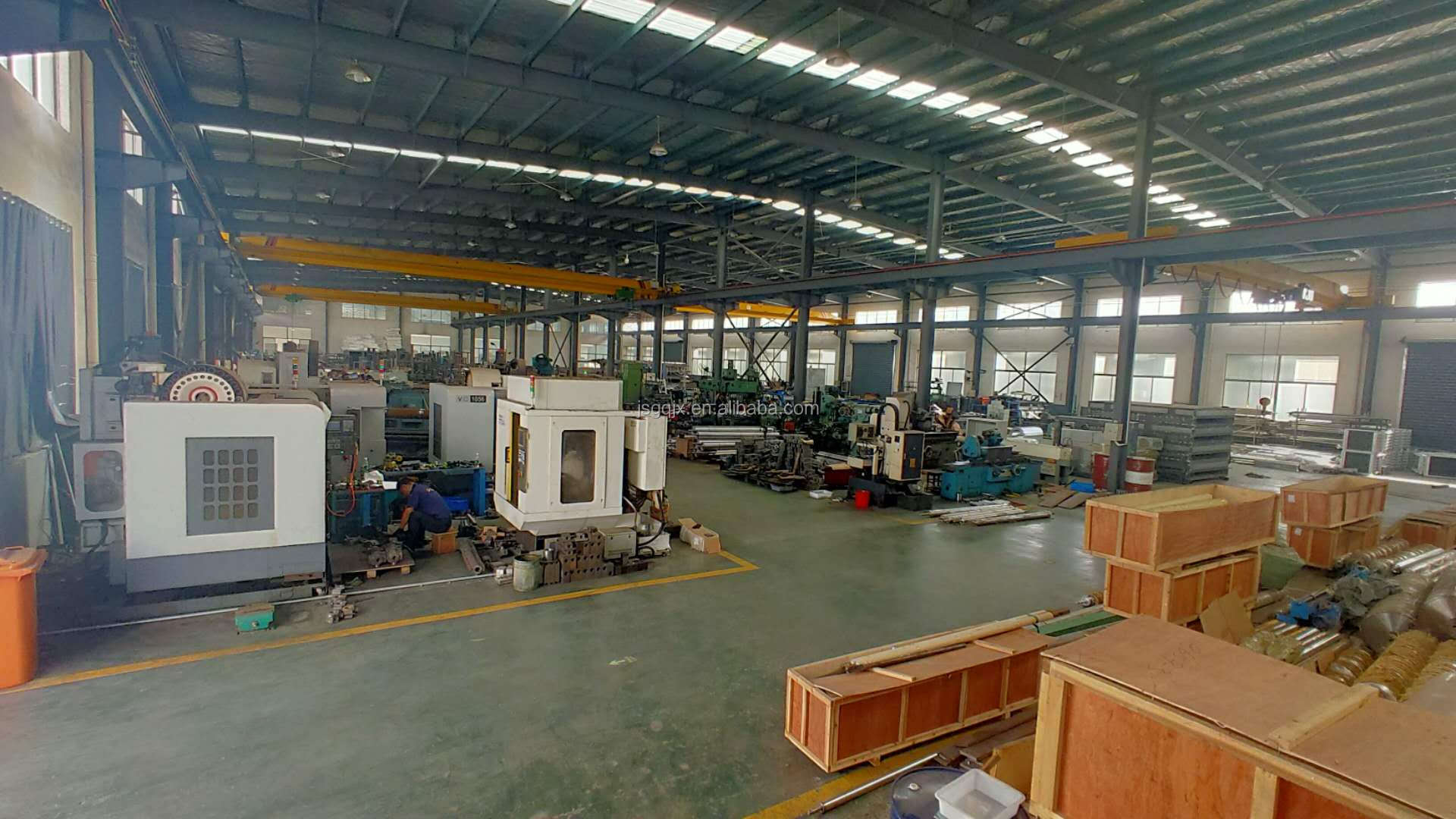

* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
|
