Supply Ability : | 100 Set/Sets per Month Film Laminating Machine |
Price : | $8,900.00 - $159,999.00/sets |

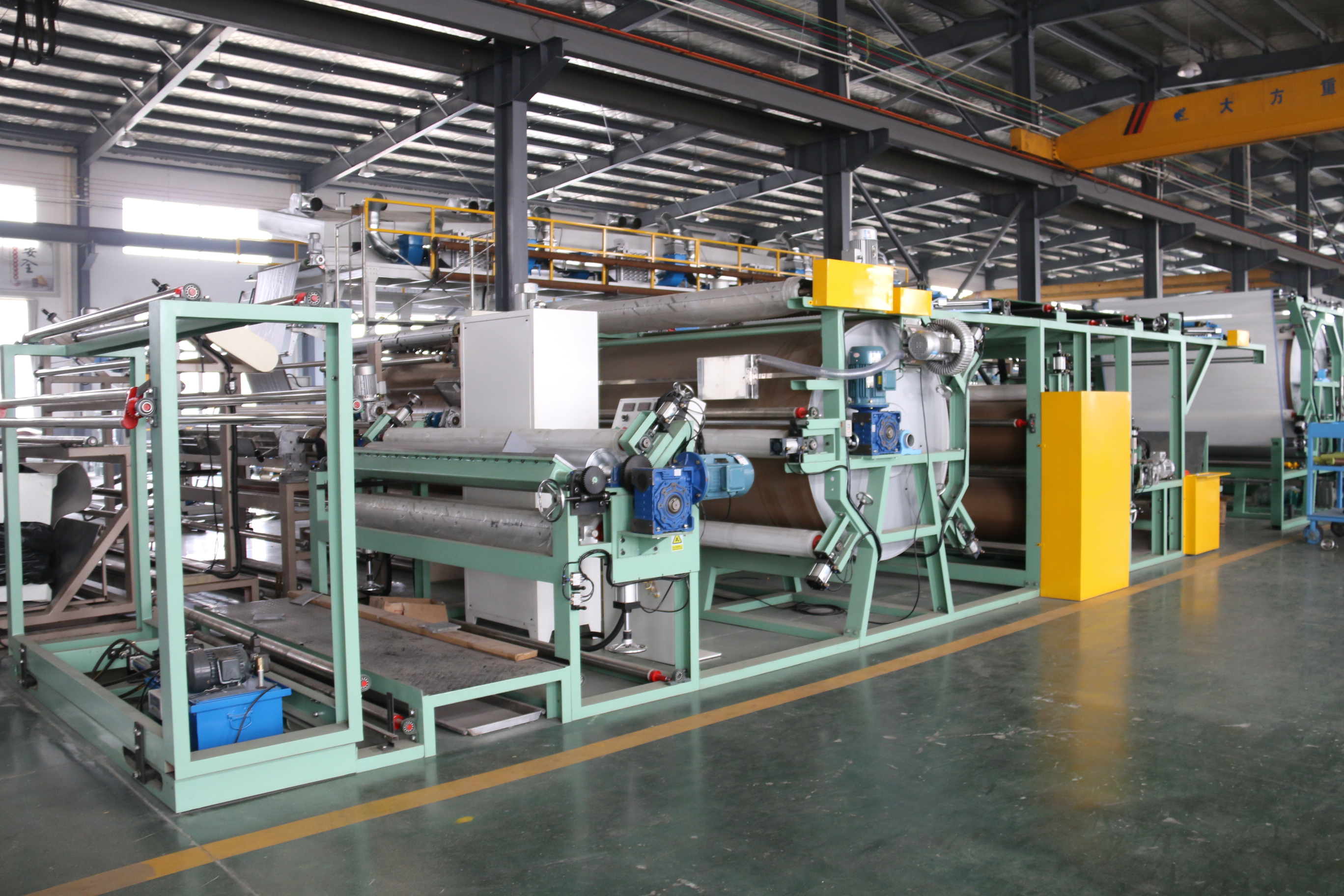

This Fabric Lamination Machine is used for gluing fabric, film and
other materials, such as:
Fabric, Nonwoven...
Film (Membrane) such as PU, TPU, PTFE, PE, BOPP, OPP, PET, PVC...
Luggage materials, such as EVA, PVC...
Diving Material, such as SBR, CR...
Main Technical Parameters | ||
Material Width: | 1800mm, 2000mm, According to The Maximum Material Width | |
Drying Roller Diameter: | 1500mm, customizable | |
Drying Roller Width: | According to The Maximum Material Width | |
Running speed: | Running speed: | |
Power: | 50 KW | |
50 KW | 8500 KGS |
1)Solvent based glue or PU glue is applicable for the film
laminating machine.
2)Glue is transferred evenly to material surface via engraved
roller (dot or diamond shape or other shapes). Therefore, laminated
materials are soft, waterproof and breathable.
3)The glue quantity is decided by two factors: the distance between
the glue roller and the glue scraping blade (pneumatic control) and
second, the glue roller mesh you choose for the laminating machine.
4)Special high temperature resistant and antirust Teflon paper on
the drying roller surface protects materials' original and unique
features and characteristics and prevents the glue from sticking to
the roller of the laminating machine.
5)Special film unwinding device and film lining reclaimer are
installed on the upper plate, facilitating operation as well as
saving space. The glue can be transferred onto film or the other
fabric before laminating, more options.
6)Efficient cooling device boosts the lamination effect.
100% Response Rate
100% Response Rate
100% Response Rate
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 40HQ | |
Weight | 4.5 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. |
![]() |
