Jiangsu Gaoqi Machinery Co., Ltd
2 Years
| Ask Lasest Price | |
| Brand Name : | GAOQI |
| Certification : | CE |
| Supply Ability : | 30 Set/Sets per Month |
| Price : | $9,800.00 - $48,900.00/sets |
Product Description

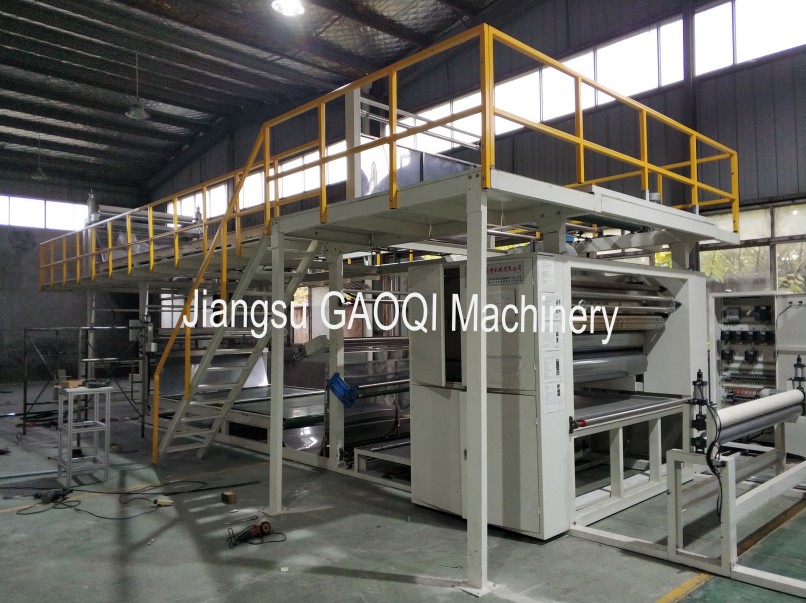

This flame laminating machine is used for the laminating for sponge/foam to many other materials such as woven or non woven fabrics, knitted, natural or synthetic fabrics, velvet, plush, polar fleece, corduroy, leathter, synthetic leather, PVC, etc.
The sponge can also be entirely melt as an adhesive for the laminating of two other materials.
Application:
Automotive industry ( car interiors, car seats, car ceilings)
Upholstery industry ( office chairs, sofas, babies items, stuffing,
carpets)
Footwear industry( shoe pads, shoe vamps)
Garment industry
Household cleaning products -PU- fiber scourers
Thermal insulation - sound absorption, etc.
Working Process:
a. Flame lamination is a process that adheres material to the surface of the fire-retardant foam or EVA.
b. Melt the fire-retardant foam or EVA by spraying flame, and there will be a layer of sticky stuff on the surface of it.
c. Then, quickly press the material against the foam or EVA.
d. The water cooling system well strengthen the laminating effect.
e. Viscosity and fastness depend on the choice of materials and the processing conditions.
f. Accumulators are used in this machine, greatly improve the process of continuous production.
Features:
1. No glue laminating process, melt the surface of sponge into a sticky adhesive.
2. The whole machine is controlled by PLC system.
3. Two storage and conveyer belt ensure the materials keep feeding into the laminating part with no stop when replacing material roller, greatly raise the production effiency.
4. Fume exhauster keeps the working place clean.
5. High quality burner ensure the flame stability and working safety.
6. Thickness of finished products is adjustable by PLC controlled servos.
General Specs (Customized)
Width of fabric | 1600mm,1800mm,2000mm according to customers' requirement |
Machine Roller Surface | 2000mm,2200mm,2400mm according to customers' requirement |
Machine Speed | 20-50m per min |
Burner Brand | Domestic Brand, South Korean Brand or Germany Brand |
Cooling System | Circulating cooling water |
Voltage | 220v, 380v, Customizable |
|
|
